Revision History

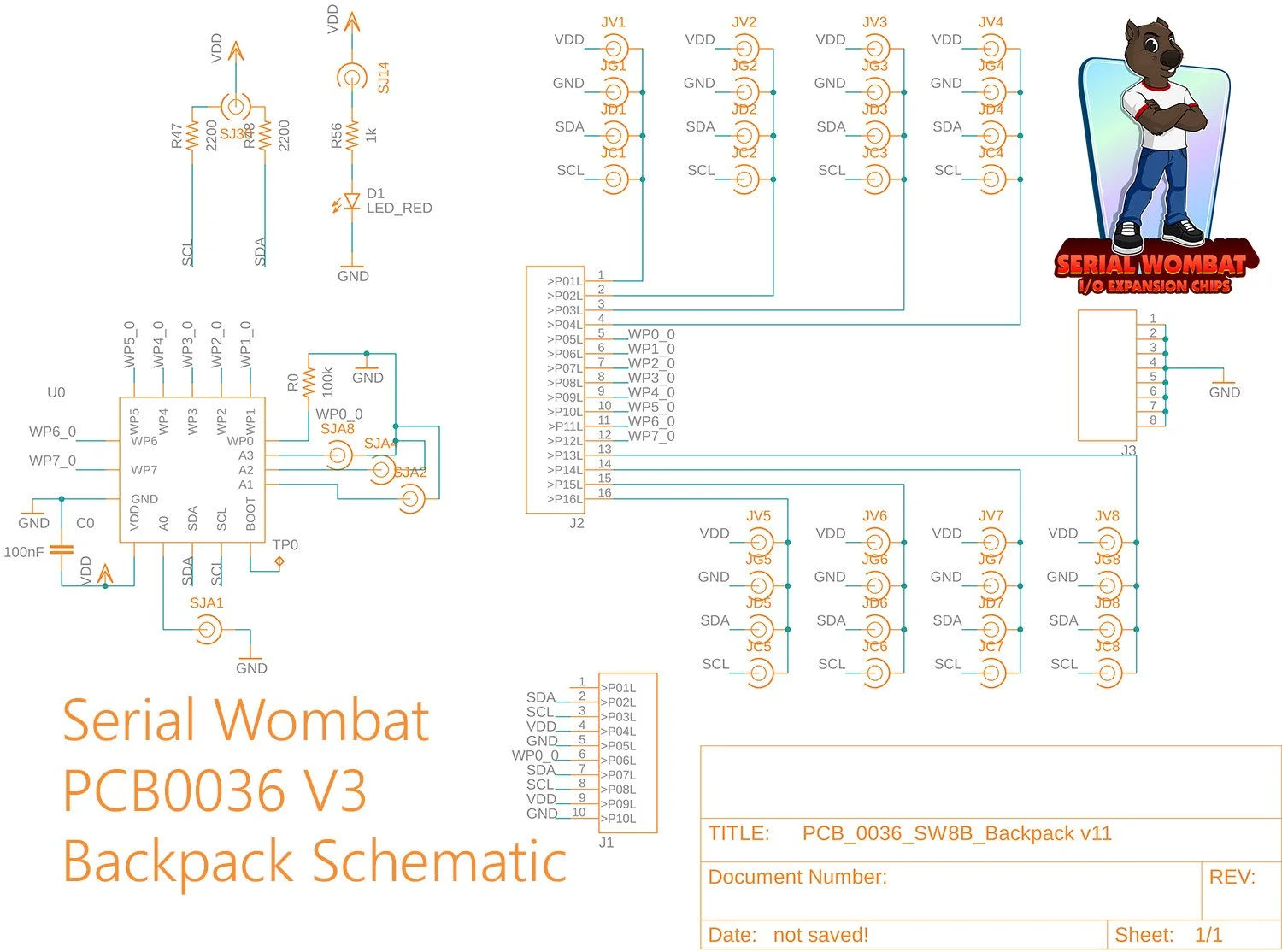

V3:

Sent to Amazon in August of 2025. This board corrected the GND solder jumper error and improved the clarity of the slikscreen, including adding letter names to the configurable VCC/GND/SDA/SCL pins. No known issues at this time

V2:

Sent toKickstarter backers in July of 2025. This board contains one known error.

The rightmost GND solder jumper on the back side of SW8B BackPack P0036 V2 is not properly routed and cannot be used to connect the rightmost configurable pin hole to ground. VDD, SCL and SDA connections are functional. Suggested workaround is to reverse the board orientation if your rightmost pin needs to grounded. Inoperable jumper has been marked on these boards with a red marker.

V1:

An internal release used for prototyping and Kickstarter demo videos
